Would you like to plan and design your new house at home and in peace? Ashampoo 3D CAD Architecture is for all who want to make their visions a reality. The integrated step-by-step wizard will get you reliable results fast. 2D, 3D and cross-section views help you keep an eye on your project and instantly spot missing parts or sections that need more work. The program helps you identify and eliminate weak points and bottlenecks! Whether you're building or redecorating a house - visualize in advance what the finished project will look like! Get yourself the home design and 3D construction software that will get you results!

New design and construction tools

Numeric input tools are a must-have for exact plans, which is why the new version has made great strides in this area! New input methods for walls, windows, and doors make your life easier while new number-focused tools allow for added precision and flexibility in these areas. Along with the new extra parts for windows, doors, shutter boxes, blinds and borders, this program delivers a significant productivity boost to all design and construction-related projects.

Many new catalogs and objects

Ashampoo 3D CAD is also so popular because of the sheer number of objects it comes with. Get access to over 1,200 new ED objects and 250 ready-made groups with the new group catalog! It includes groups of pre-assembled garages, kitchen units, garden sheds, and saunas. Create your own directories and access them directly through the catalog. It's a usability dream come true! And by popular customer request, we've added the ability to measure heights at values above sea level in cross-sections and views. Get ready for a program that also shines in the details!

New in Ashampoo® 3D CAD Architecture

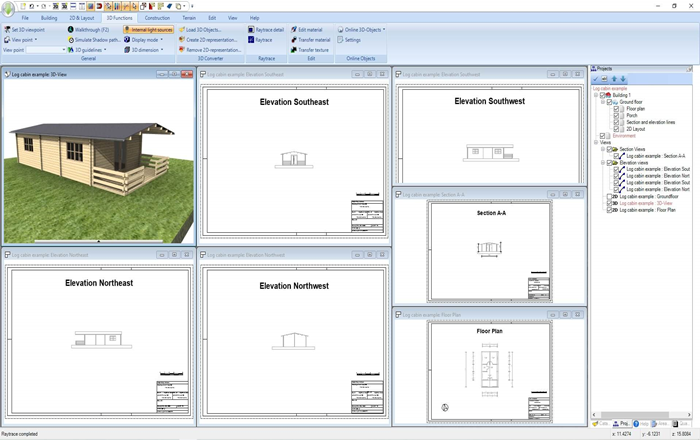

Auto-dimensioning for 2D floor plans and views
Automatic item text, mark your walls and windows with a unique item number
Door and Window catalog, extended catalog with US style windows
Railings, railing editor dialog with multiple style options
Railing style catalog, save your own railing design
Fences, as a variant of railings, automatically follow your 3D terrain design
Retaining walls, used for your plot, garden and terrain design
Balcony catalog with different railing styles
New north arrow property dialog, including 2D preview, rotation options, scaling
New plot element for terrain editing
Automatic borders for terrain elements such as beds, terrace, etc.
Extended catalogs, new doors, more than 250 new 3D objects, 200 new 2D symbols, etc.
Area specifications for 2D drawing elements, polygons, circles, rectangles, etc.

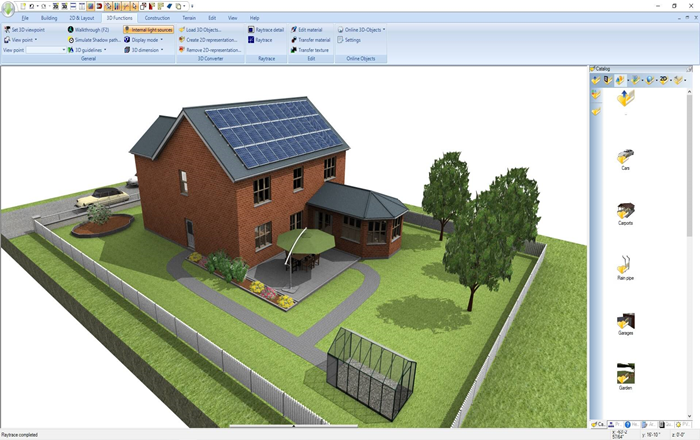

Photovoltaic installations - rooftop arrays and flat roofs

No good project design should be without photovoltaic installations. For roof-mounted system, you can already specify their layout, select modules from the object catalog and their placement during the setup phase. For flat roofs, you can simply specify which parts will be or will not be used for photovoltaic elements during the design phase. When you're done, you can place the entire installation in just two clicks and adjust distances between rows of panels or rotate and realign them - it's the perfect approach to preliminary planning!

Powerful area analysis

Due to popular demand, we have added additional area analysis and calculation features plus suitable output templates. Aside from living space you can now also process floor space, walls, ceilings, facades and many other areas. Facade areas can also be easily exported to PDF, RTF or Excel files! Position lists for windows are also no longer a problem.

Mirror objects with ease

Two powerful tools will help you mirror 3D and 2D objects and symbols either across any axis or their center points. This also works with multi-selections of the same element type which can save you a lot of time! CAD software doesn't get any more flexible than this!

BASIC FEATURES

Ashampoo 3D CAD Architecture 10 is designed to help you plan, visualize, and model building projects in both 2D and 3D with precise dimensioning tools, intuitive controls, extensive object libraries, and photorealistic rendering. It provides functional elements for interior and exterior design, supports detailed construction planning, and enables easy project organization with layers, input aids, and wizards.

WHAT'S NEW

This version introduces an extended project wizard, improved area analysis, and additional measuring options for more detailed planning. It also includes a larger 3D object library with extra symbols and ready-to-use groups. Optimized handling, enhanced floor plan views, and faster workflows further streamline designing and modeling.

SYSTEM REQUIREMENTS

You need a PC running Windows 7, Windows 8, Windows 8.1, Windows 10, or Windows 11 with a mouse or compatible pointing device. At least 4 GB RAM is recommended, and additional resources may be required for large or complex projects. A graphics card that supports OpenGL is recommended for optimal 3D rendering performance.

USER INTERFACES LANGUAGES

English, German, French, Hungarian, Dutch, Polish, Portuguese, Spanish, Italian, Swedish, Turkish, Russian

BRAND

Ashampoo

TYPE

3D CAD Architecture Software

FOR OPERATING SYSTEM

Windows 10, Windows 11

LICENSE CATEGORY

One-time pay

FORMAT

Digital Download

MODEL

Ashampoo 3D CAD Architecture 10

COUNTRY OF USE

Is available for use worldwide

MANUFACTURER COUNTRY

Germany ​
